by Hella
SKU 1FE 016 773-001-HEL
Sold out
£172.99 - £172.99
£172.99
£172.99 - £172.99
£172.99

Free Standard Delivery for Orders Over £40*

Product Information

Description

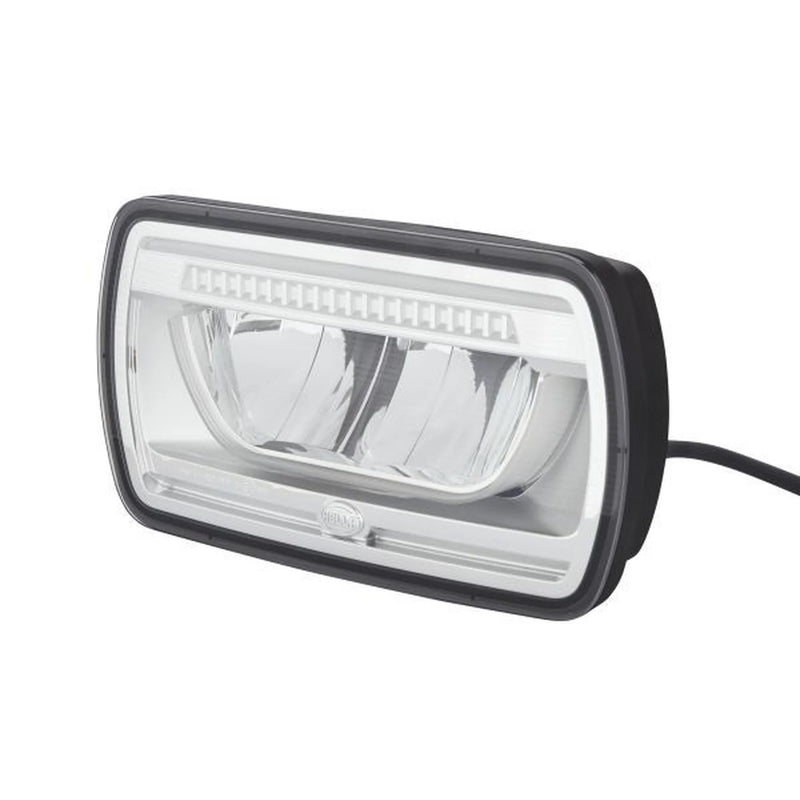

This Hella High Beam Headlight (Part Number 1FE 016 773-001) is OE-quality replacement, supplied for direct fitment to compatible vehicles.

Specifications
Brand Hella
Part Type High Beam Headlight
Mounting Type Bolted
Fastening Type Vertical
Lamp Type LED
Light colour white
Voltage 24V
Voltage from 9V
Voltage to 32V

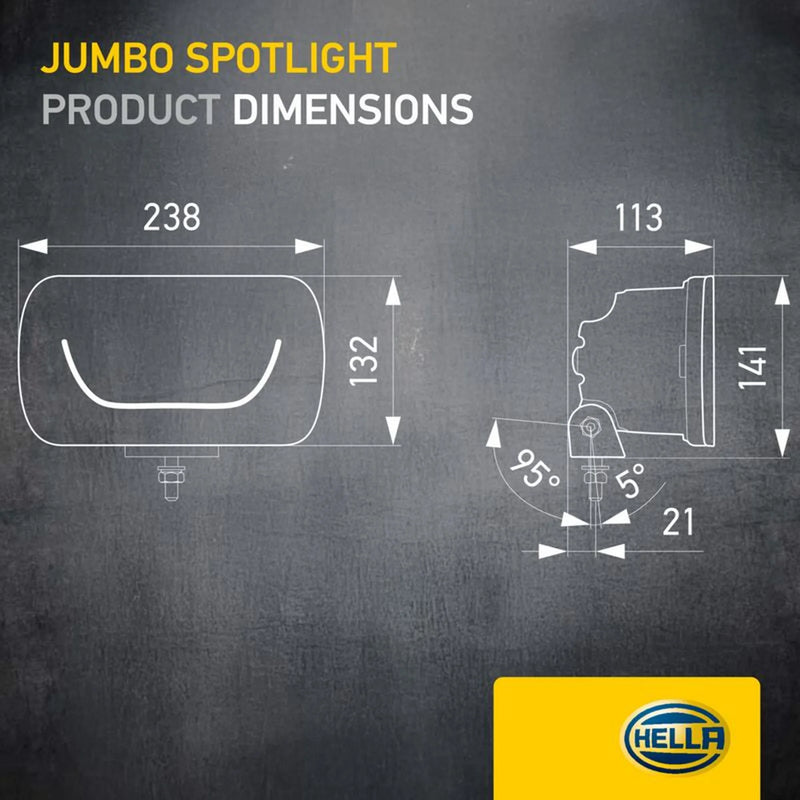

Height 132mm
Overall Height 141mm
Width 238mm
Depth 113mm
Fitting Depth 23mm
Length 5 inch
Light Function with position light (LED)
Number of light functions 2
Registration Type ECE approved
fulfils ECE standard R149
Reference number 25
Cable Length 800mm
Housing Colour black
Lens Colour Crystal clear
Shape rectangular

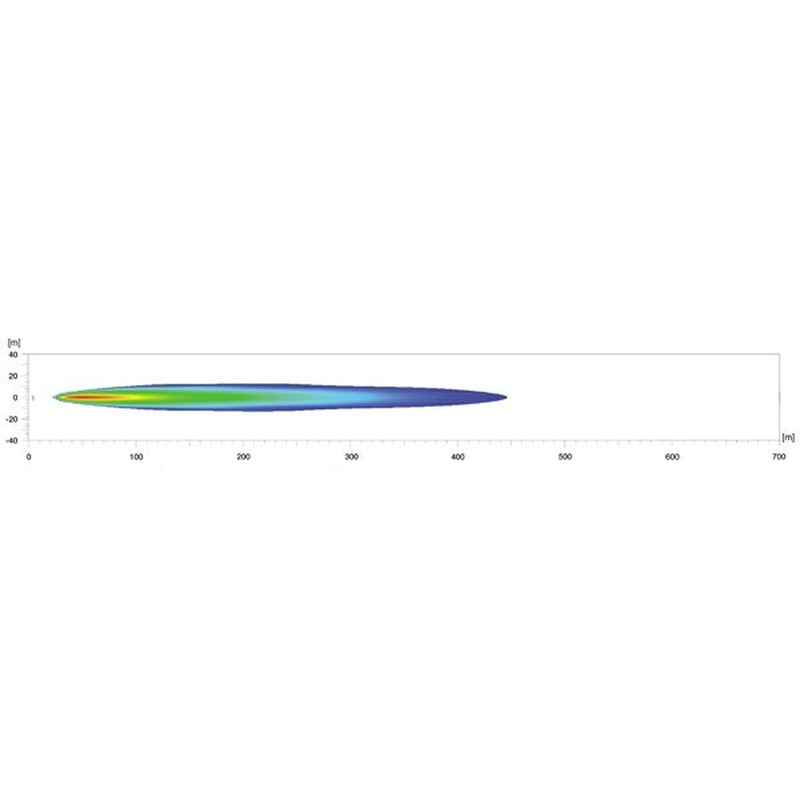

Light Distribution Long-range illumination
Diffusing Lens Type Clear diffusing lens
Diffusing Lens Material Plastic
Protection Type (IP Code) IPX9K
Plug Type open cable ends
Colour Temperature 6000 K
Luminous Flux 541 lm
Weight 680g
Power Consumption 2.7W
Housing material Thermoplast
Quantity 1
Manufacturer Part Number 1FE 016 773-001
Make Reference
Caterpillar 36740443
DAF 1546063
Iveco 500051173
Mack 25609330008.5
Scania 2960072, SP1068124
Vehicle Compatibility

Use the vehicle compatibility checker above to confirm fitment to your registration. This part fits the following vehicles:

No vehicle compatibility data available for this part.

OEM References

This part is a direct OE-quality replacement for the following original equipment manufacturer part numbers:
