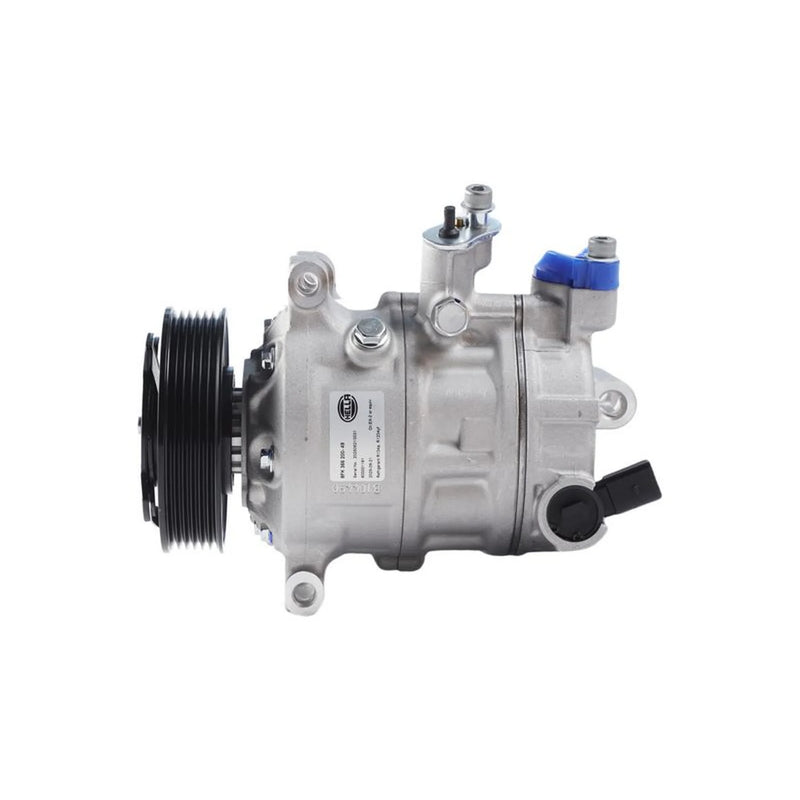

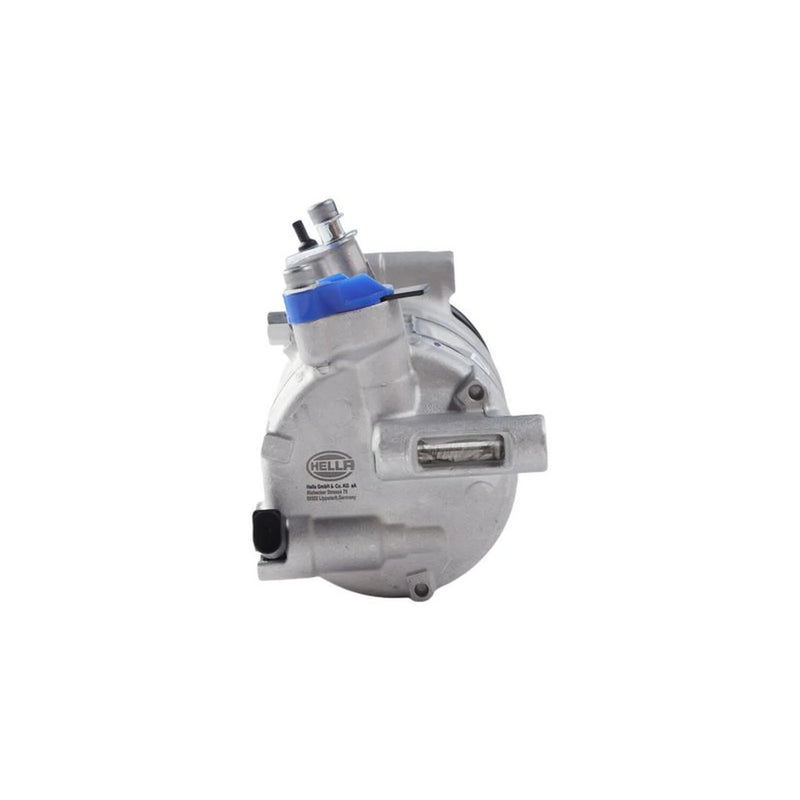

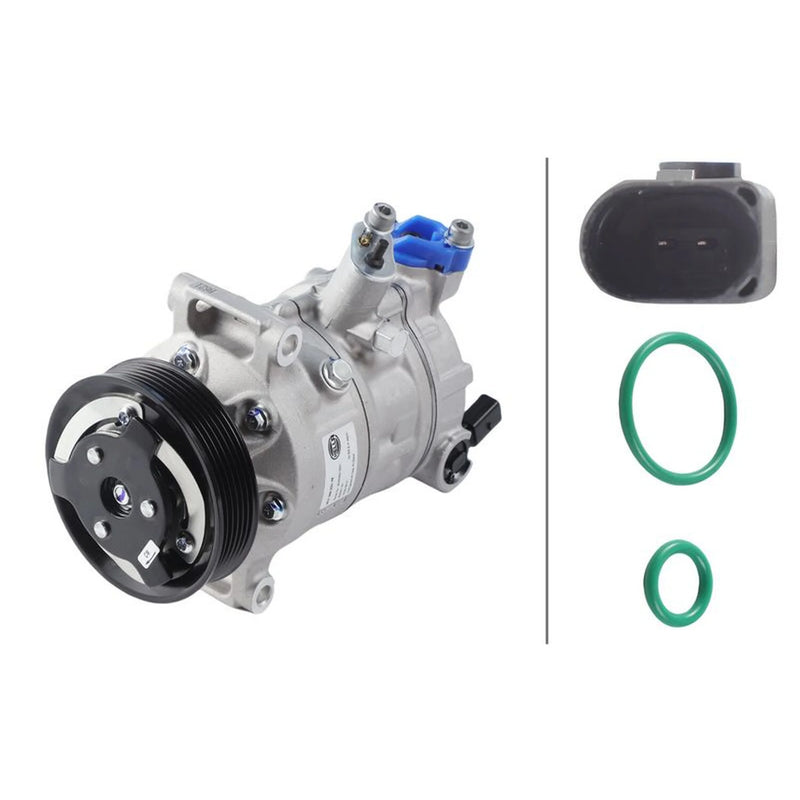

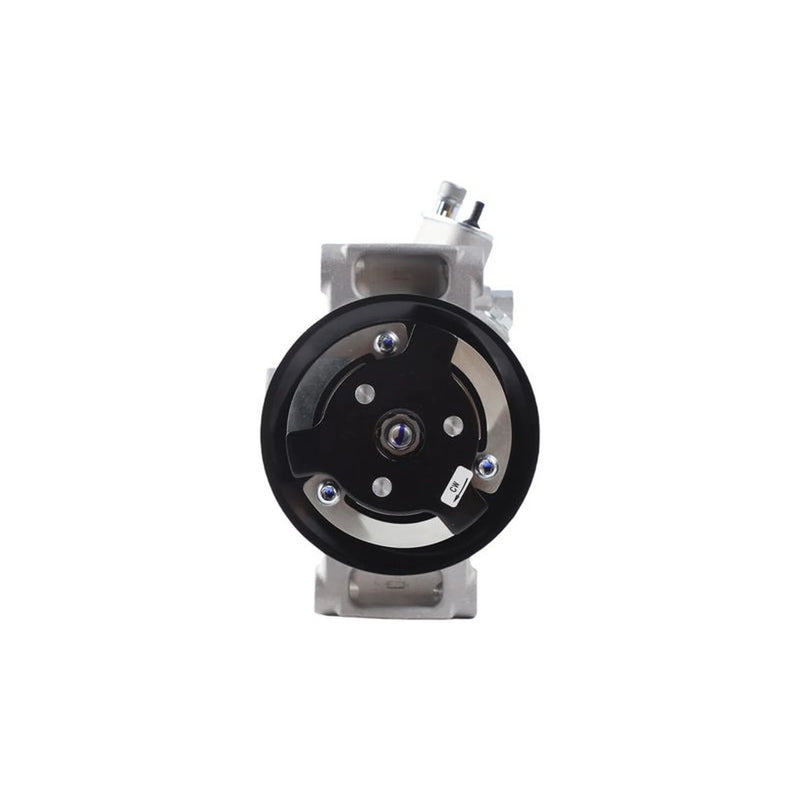

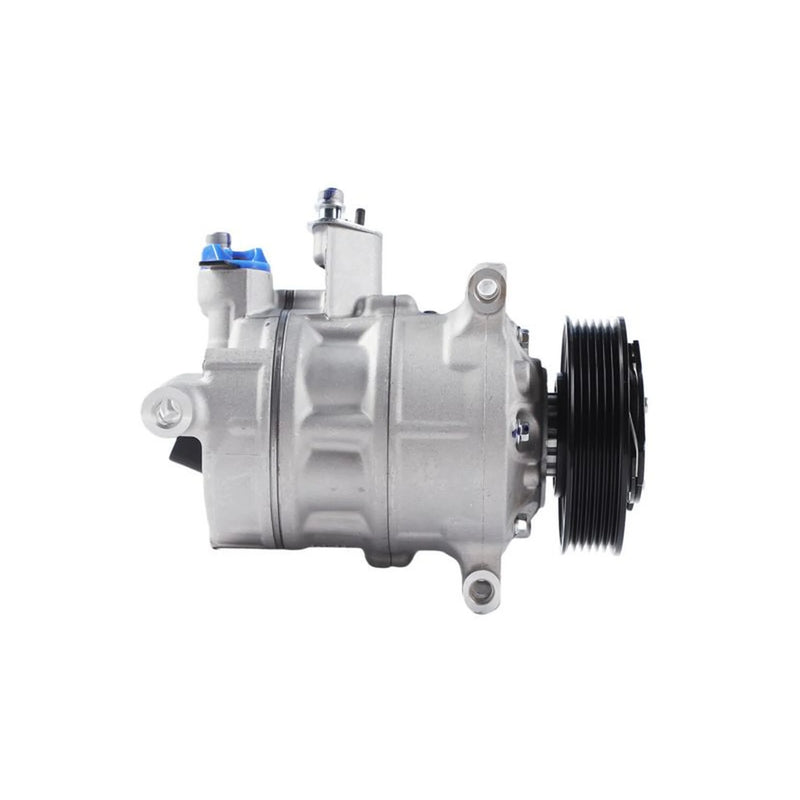

Hella Air Conditioning Compressor 8FK 366 200-491
Hella Air Conditioning Compressor 8FK 366 200-491
Hella Air Conditioning Compressor 8FK 366 200-491
Hella Air Conditioning Compressor 8FK 366 200-491
Hella Air Conditioning Compressor 8FK 366 200-491
Hella Air Conditioning Compressor 8FK 366 200-491
Hella Air Conditioning Compressor 8FK 366 200-491
Hella Air Conditioning Compressor 8FK 366 200-491
Hella Air Conditioning Compressor 8FK 366 200-491
Hella Air Conditioning Compressor 8FK 366 200-491
Hella Air Conditioning Compressor 8FK 366 200-491
Hella Air Conditioning Compressor 8FK 366 200-491
Hella Air Conditioning Compressor 8FK 366 200-491
Hella Air Conditioning Compressor 8FK 366 200-491

Hella Air Conditioning Compressor 8FK 366 200-491

by Hella
SKU 8FK 366 200-491-HEL
Sold out
£196.99 - £196.99
£196.99
£196.99 - £196.99
£196.99

Free Standard Delivery for Orders Over £40*

Product Information

Description

This Hella Compressor, air conditioning (Part Number 8FK 366 200-491) is OE-quality replacement, supplied for direct fitment to compatible vehicles.

Specifications
Brand Hella
Part Type Compressor, air conditioning
Manufacturer Restriction Valeo
Compressor ID 7SEU16C DCS-17E
Voltage 12V
Supplementary Article/Supplementary Info 2 with PAG compressor oil
Pulleys with V-ribbed belt pulley
Number of grooves 6
Belt Pulley Ø 110mm
Inlet Diameter 28.4mm
Outlet Diameter 15.4mm
Refrigerant R 1234yf
Compressor Oil PAG 46 YF
Oil Fill Quantity 100ml
Manufacturer Part Number 8FK 366 200-491
Make Model Years
Audi A1 (8X1, 8XK) 2010-2018
Audi A1 Sportback (8XA, 8XF) 2011-2018
Audi A1 Sportback (GBA) 2018 on
Make Reference
Audi 1K0 820 803 E, 1K0 820 803 F, 1K0 820 803 G, 1K0 820 803 H, 1K0 820 803 J, 1K0 820 803 L, 1K0 820 803 N, 1K0 820 803 NX, 1K0 820 803 P, 1K0 820 803 Q, 1K0 820 803 QX, 1K0 820 803 S, 1K0 820 803 SX, 1K0 820 808 A, 1K0 820 808 AX, 1K0 820 808 B, 1K0 820 808 BX, 1K0 820 808 D, 1K0 820 808 DX, 1K0 820 808 F, 1K0 820 808 FX, 1K0 820 859, 1K0 820 859 C, 1K0 820 859 D, 1K0 820 859 E, 1K0 820 859 F, 1K0 820 859 H, 1K0 820 859 J, 1K0 820 859 M, 1K0 820 859 N, 1K0 820 859 P, 1K0 820 859 Q, 1K0 820 859 QX, 1K0 820 859 S, 1K0 820 859 SX, 1K0 820 859 T, 1K0 820 859 TX, 1KD 820 803 A, 1KD 820 803 B, 1KD 820 803 H, 1KD 820 803 K, 1KD 820 803 L, 1KD 820 803 M, 2E0 820 803 A, 2E0 820 803 B, 2E0 820 803 C, 2E0 820 803 D, 2E0 820 803 G, 5K0 820 803, 5K0 820 803 A, 5K0 820 803 C, 5K0 820 803 CX, 5K0 820 803 E, 5K0 820 803 EX, 5K0 820 803 F, 5K0 820 803 G, 5K0 820 803 GX, 5K0 820 803 H, 5K0 820 803 HX, 5K0 820 803 J, 5K0 820 803 JX, 5K0 820 803 K, 5K0 820 803 KX, 5K0 820 803 X, 5N0 820 803, 5N0 820 803 A, 5N0 820 803 B, 5N0 820 803 C, 5N0 820 803 E, 5N0 820 803 F, 5N0 820 803 G, 5N0 820 803 H, 5N0 820 803 HX, 5N0 820 803 X, 5Q0 816 803, 5Q0 816 803 B, 5Q0 816 803 C, 5Q0 816 803 D, 5Q0 816 803 E, 5Q0 816 803 F, 5Q0 816 803 H, 5Q0 816 803 J, 5Q0 816 803 L, 5Q0 816 803 Q, 5Q0 820 803, 5Q0 820 803 A, 5Q0 820 803 B, 5Q0 820 803 C, 5Q0 820 803 D, 5Q0 820 803 E, 5Q0 820 803 F, 5Q0 820 803 G, 5Q0 820 803 J, 5Q0 820 803 K, 5Q0 820 803 L, 5Q0 820 803 M, 5Q0 820 803 N, 5Q0 820 803 P, 5Q0 820 803 Q, 5Q0 820 803 R, 6QD 820 803, 7C0 816 803 C, 7E0 816 803 B, 7E0 816 803 F, 7E0 816 803 G, 7E0 816 803 H, 7E0 820 803 M, 7E0 820 803 T, 7N0 816 803, 7N0 816 803 B, 7N0 816 803 D, 8J0 260 805, 8J0 260 805 A, 8Q0 816 803 D, W01 K08 208 59F
Audi (Faw) 1K0 820 808 A, 5K0 820 803 G
Cupra 1K0 820 808 A, 1K0 820 808 AX, 1K0 820 859 H, 1K0 820 859 J, 1K0 820 859 N, 1K0 820 859 P, 1K0 820 859 T, 1K0 820 859 TX, 5K0 820 803, 5K0 820 803 A, 5K0 820 803 C, 5K0 820 803 CX, 5K0 820 803 E, 5K0 820 803 EX, 5K0 820 803 F, 5K0 820 803 G, 5K0 820 803 GX, 5K0 820 803 H, 5K0 820 803 HX, 5K0 820 803 J, 5K0 820 803 JX, 5K0 820 803 K, 5K0 820 803 KX, 5K0 820 803 X, 5N0 820 803, 5N0 820 803 A, 5N0 820 803 B, 5N0 820 803 C, 5N0 820 803 E, 5N0 820 803 F, 5N0 820 803 G, 5N0 820 803 H, 5N0 820 803 HX, 5N0 820 803 X, 5Q0 816 803, 5Q0 816 803 B, 5Q0 816 803 C, 5Q0 816 803 D, 5Q0 816 803 E, 5Q0 816 803 F, 5Q0 820 803, 5Q0 820 803 A, 5Q0 820 803 B, 5Q0 820 803 C, 5Q0 820 803 D, 5Q0 820 803 E, 5Q0 820 803 F, 5Q0 820 803 G, 5Q0 820 803 J, 5Q0 820 803 K, 5Q0 820 803 M, 5Q0816803H, 5Q0820803P, 8J0 260 805, 8J0 260 805 A
MAN 5Q0820803L, 5Q0820803M, 7C0 820 803, 7E0820803M, 7E0820803T
SEAT 1K0 820 803 E, 1K0 820 803 F, 1K0 820 803 G, 1K0 820 803 H, 1K0 820 803 J, 1K0 820 803 L, 1K0 820 803 N, 1K0 820 803 NX, 1K0 820 803 P, 1K0 820 803 Q, 1K0 820 803 QX, 1K0 820 803 S, 1K0 820 803 SX, 1K0 820 808 A, 1K0 820 808 AX, 1K0 820 808 B, 1K0 820 808 BX, 1K0 820 808 D, 1K0 820 808 DX, 1K0 820 808 F, 1K0 820 808 FX, 1K0 820 859, 1K0 820 859 C, 1K0 820 859 D, 1K0 820 859 E, 1K0 820 859 F, 1K0 820 859 H, 1K0 820 859 J, 1K0 820 859 M, 1K0 820 859 N, 1K0 820 859 P, 1K0 820 859 Q, 1K0 820 859 QX, 1K0 820 859 S, 1K0 820 859 SX, 1K0 820 859 T, 1K0 820 859 TX, 1KD 820 803 A, 1KD 820 803 B, 1KD 820 803 H, 1KD 820 803 K, 1KD 820 803 L, 1KD 820 803 M, 2E0 820 803 A, 2E0 820 803 B, 2E0 820 803 C, 2E0 820 803 D, 2E0 820 803 G, 5K0 820 803, 5K0 820 803 C, 5K0 820 803 CX, 5K0 820 803 E, 5K0 820 803 EX, 5K0 820 803 G, 5K0 820 803 GX, 5K0 820 803 H, 5K0 820 803 HX, 5K0 820 803 J, 5K0 820 803 JX, 5K0 820 803 KX, 5K0 820 803 X, 5N0 820 803, 5N0 820 803 C, 5N0 820 803 G, 5N0 820 803 H, 5N0 820 803 HX, 5Q0 816 803, 5Q0 816 803 B, 5Q0 816 803 D, 5Q0 816 803 E, 5Q0 816 803 F, 5Q0 816 803 L, 5Q0 820 803, 5Q0 820 803 A, 5Q0 820 803 B, 5Q0 820 803 C, 5Q0 820 803 D, 5Q0 820 803 E, 5Q0 820 803 F, 5Q0 820 803 G, 5Q0 820 803 J, 5Q0 820 803 K, 5Q0 820 803 M, 5Q0 820 803 P, 5Q0 820 803 Q, 5Q0816803H, 7E0 816 803 B, 7E0 816 803 F, 7E0 816 803 G, 7E0 816 803 H, 7E0 820 803 M, 7E0 820 803 T, 7N0 816 803, 7N0 816 803 B, 7N0 816 803 D, W01 K08 208 59F
Skoda 1K0 820 803 E, 1K0 820 803 F, 1K0 820 803 G, 1K0 820 803 H, 1K0 820 803 J, 1K0 820 803 L, 1K0 820 803 N, 1K0 820 803 NX, 1K0 820 803 P, 1K0 820 803 Q, 1K0 820 803 QX, 1K0 820 803 S, 1K0 820 803 SX, 1K0 820 808 A, 1K0 820 808 AX, 1K0 820 808 B, 1K0 820 808 BX, 1K0 820 808 D, 1K0 820 808 DX, 1K0 820 808 F, 1K0 820 808 FX, 1K0 820 859, 1K0 820 859 C, 1K0 820 859 D, 1K0 820 859 E, 1K0 820 859 F, 1K0 820 859 H, 1K0 820 859 J, 1K0 820 859 M, 1K0 820 859 N, 1K0 820 859 P, 1K0 820 859 Q, 1K0 820 859 QX, 1K0 820 859 S, 1K0 820 859 SX, 1K0 820 859 T, 1K0 820 859 TX, 1KD 820 803 A, 1KD 820 803 B, 1KD 820 803 H, 1KD 820 803 K, 1KD 820 803 L, 1KD 820 803 M, 2E0 820 803 A, 2E0 820 803 B, 2E0 820 803 C, 2E0 820 803 D, 2E0 820 803 G, 5K0 820 803, 5K0 820 803 C, 5K0 820 803 CX, 5K0 820 803 E, 5K0 820 803 EX, 5K0 820 803 G, 5K0 820 803 GX, 5K0 820 803 H, 5K0 820 803 HX, 5K0 820 803 J, 5K0 820 803 JX, 5K0 820 803 KX, 5K0 820 803 X, 5N0 820 803, 5N0 820 803 C, 5N0 820 803 G, 5N0 820 803 H, 5N0 820 803 HX, 5Q0 816 803, 5Q0 816 803 B, 5Q0 816 803 D, 5Q0 816 803 E, 5Q0 816 803 F, 5Q0 816 803 K, 5Q0 816 803 L, 5Q0 820 803, 5Q0 820 803 A, 5Q0 820 803 B, 5Q0 820 803 C, 5Q0 820 803 D, 5Q0 820 803 E, 5Q0 820 803 F, 5Q0 820 803 G, 5Q0 820 803 J, 5Q0 820 803 K, 5Q0 820 803 M, 5Q0 820 803 P, 5Q0 820 803 Q, 5Q0 820 803 R, 5Q0816803H, 5Q0820803N, 7E0 816 803 B, 7E0 816 803 F, 7E0 816 803 G, 7E0 816 803 H, 7E0 820 803 M, 7E0 820 803 T, 7N0 816 803, 7N0 816 803 B, 7N0 816 803 D, 8J0260805, W01 K08 208 59F
VW 1K0 820 803 E, 1K0 820 803 F, 1K0 820 803 G, 1K0 820 803 H, 1K0 820 803 J, 1K0 820 803 L, 1K0 820 803 N, 1K0 820 803 NX, 1K0 820 803 P, 1K0 820 803 Q, 1K0 820 803 QX, 1K0 820 803 S, 1K0 820 803 SX, 1K0 820 808 A, 1K0 820 808 AX, 1K0 820 808 B, 1K0 820 808 BX, 1K0 820 808 D, 1K0 820 808 DX, 1K0 820 808 F, 1K0 820 808 FX, 1K0 820 859, 1K0 820 859 C, 1K0 820 859 D, 1K0 820 859 E, 1K0 820 859 F, 1K0 820 859 H, 1K0 820 859 J, 1K0 820 859 M, 1K0 820 859 N, 1K0 820 859 P, 1K0 820 859 Q, 1K0 820 859 QX, 1K0 820 859 S, 1K0 820 859 SX, 1K0 820 859 T, 1K0 820 859 TX, 1KD 820 803 A, 1KD 820 803 B, 1KD 820 803 H, 1KD 820 803 K, 1KD 820 803 L, 1KD 820 803 M, 2E0 820 803 A, 2E0 820 803 B, 2E0 820 803 C, 2E0 820 803 D, 2E0 820 803 G, 5K0 820 803, 5K0 820 803 A, 5K0 820 803 C, 5K0 820 803 CX, 5K0 820 803 E, 5K0 820 803 EX, 5K0 820 803 F, 5K0 820 803 G, 5K0 820 803 GX, 5K0 820 803 H, 5K0 820 803 HX, 5K0 820 803 J, 5K0 820 803 JX, 5K0 820 803 K, 5K0 820 803 KX, 5K0 820 803 L, 5K0 820 803 X, 5N0 820 803, 5N0 820 803 A, 5N0 820 803 B, 5N0 820 803 C, 5N0 820 803 E, 5N0 820 803 F, 5N0 820 803 G, 5N0 820 803 H, 5N0 820 803 HX, 5N0 820 803 X, 5Q0 816 803, 5Q0 816 803 B, 5Q0 816 803 C, 5Q0 816 803 D, 5Q0 816 803 E, 5Q0 816 803 F, 5Q0 816 803 H, 5Q0 816 803 J, 5Q0 816 803 L, 5Q0 816 803 Q, 5Q0 820 803, 5Q0 820 803 A, 5Q0 820 803 B, 5Q0 820 803 C, 5Q0 820 803 D, 5Q0 820 803 E, 5Q0 820 803 F, 5Q0 820 803 G, 5Q0 820 803 J, 5Q0 820 803 K, 5Q0 820 803 L, 5Q0 820 803 M, 5Q0 820 803 N, 5Q0 820 803 P, 5Q0 820 803 Q, 5Q0 820 803 R, 6QD 820 803, 7C0 816 803C, 7C0 820 803, 7C0 820 803 A, 7C0 820 803 C, 7E0 816 803 B, 7E0 816 803 F, 7E0 816 803 G, 7E0 816 803 H, 7E0 820 803 M, 7E0 820 803 T, 7N0 816 803, 7N0 816 803 B, 7N0 816 803 D, 8J0 260 805, 8J0 260 805 A, 8Q0 816 803 D, W01 K08 208 59F
VW (Faw) 6QD 820 803
Vehicle Compatibility

Use the vehicle compatibility checker above to confirm fitment to your registration. This part fits the following vehicles:

OEM References

This part is a direct OE-quality replacement for the following original equipment manufacturer part numbers:

Why Buy Hella?

Hella is a trusted name in OE-quality replacement parts. Every component is manufactured to original equipment standards, providing reliable performance, exact fitment and long service life.

  • OE-quality construction
  • Tested to manufacturer specifications
  • Trusted by professional workshops
  • Backed by manufacturer warranty
